JB風機專用低頻阻尼彈簧減震器

Special low frequency damping spring damper for fan

上海松夏有限公司官方網站為您介紹：JB風機專用低頻阻尼彈簧減震器信息，松夏集團是*家從事風機減震器生產廠家，為風機推薦*款專用的彈簧減震器，采用低頻阻尼型設計，讓風機大大的降低震動，，非常明顯，以下是風機減震器介紹。

Shanghai Songxia absorber group limited official website for your introduction: JB-60-S fan special low frequency damping spring damper, Songxia group is a professional engaged in the fan damper manufacturers recommend a special spring damper for fan, the low frequency damping type design, let the wind machine greatly reduced to enhance the effect of vibration, *, is very obvious, the following is fan dampers are introduced.



產品主要.點與用途

JB型低頻可調式阻尼彈簧減振器采用高強度球鐵材質,具有載荷范圍寬，固有頻率低，安裝方便等優點。減振器上部配有上螺栓與設備固定，下部可與地基固定：設有高度調節螺栓，可以調節設備水平，并采用側向阻尼，提高了縱、橫向水平的剛度(阻尼比>0.065)。

應用*域：空調箱、排送風機、風車。小型冰水機組、水泵。發電機組、*般產業機械組。

Main features and uses of products

The JB type low frequency adjustable damping spring damper adopts the material of high strength ductile iron, which has the advantages of wide load range, low natural frequency and convenient installation. The upper part of the shock absorber is equipped with upper bolts and equipment fixed, and the lower part can be fixed with the foundation. It has a height adjusting bolt, which can adjust the equipment level and use lateral damping to improve the horizontal and horizontal stiffness (damping ratio >0.065).

Application areas: air conditioning box, exhaust fan, windmill. Small ice water unit, water pump. The generator set, the general industrial machinery group.

JB風機專用低頻阻尼彈簧減震器 Fan low frequency damping

JB型彈簧減震器本體材質分為.殊強化尼龍及球狀鑄鐵。.殊強化尼龍材質為尼龍加強化纖維，強度.*；尼龍材質可耐酸鹼，防紫外線，并經嚴格老化測試，品質優良，安全性高。球狀鑄鐵本體經熱浸鍍鋅處理，耐候性*。外型輕巧堅固，按裝容易；適用于各類機械內避震裝置。彈簧均經熱處理、ED防銹、烤漆等程序處理。荷重?fù)隙?5mm、40mm能有效消除機械結構振動。*

The material of JB type spring shock absorber is divided into special reinforced nylon and spherical cast iron. Special material for nylon reinforced nylon with fiber reinforced nylon material, excellent strength; resistant to acid and alkali, anti ultraviolet, and the strict aging test, good quality, high safety. The spheroidal cast iron is treated by hot dip galvanizing, and the weatherability is good. It is light and sturdy and easy to install. It is suitable for all kinds of mechanical shock devices. The spring is treated by heat treatment, ED antirust, baking paint and so on. The load deflection of 25mm and 40mm can effectively eliminate the vibration of mechanical structure. *

JB型彈簧減震器又稱風機減震器具有結構簡單，安裝方便等.點，減振器上下端各有螺絲及螺絲孔，彈簧上端有高度調節螺母，可根據安裝需要自由調整高度，減震器兩端有側向橡膠阻尼，加大了垂向的阻尼系數，提高了縱向和橫向的剛度，確保設備能更安全的運行。

JB type spring shock absorber and the fan damper has the advantages of simple structure, easy installation, shock absorber on the lower end of the screw and the screw hole, the upper end of the spring with a height adjusting nut can be installed according to the need to adjust the height of freedom, both ends of the lateral rubber shock absorber damping, increase the damping coefficient of vertical, improve the longitudinal and transverse stiffness, ensure the safe operation of equipment can be more.

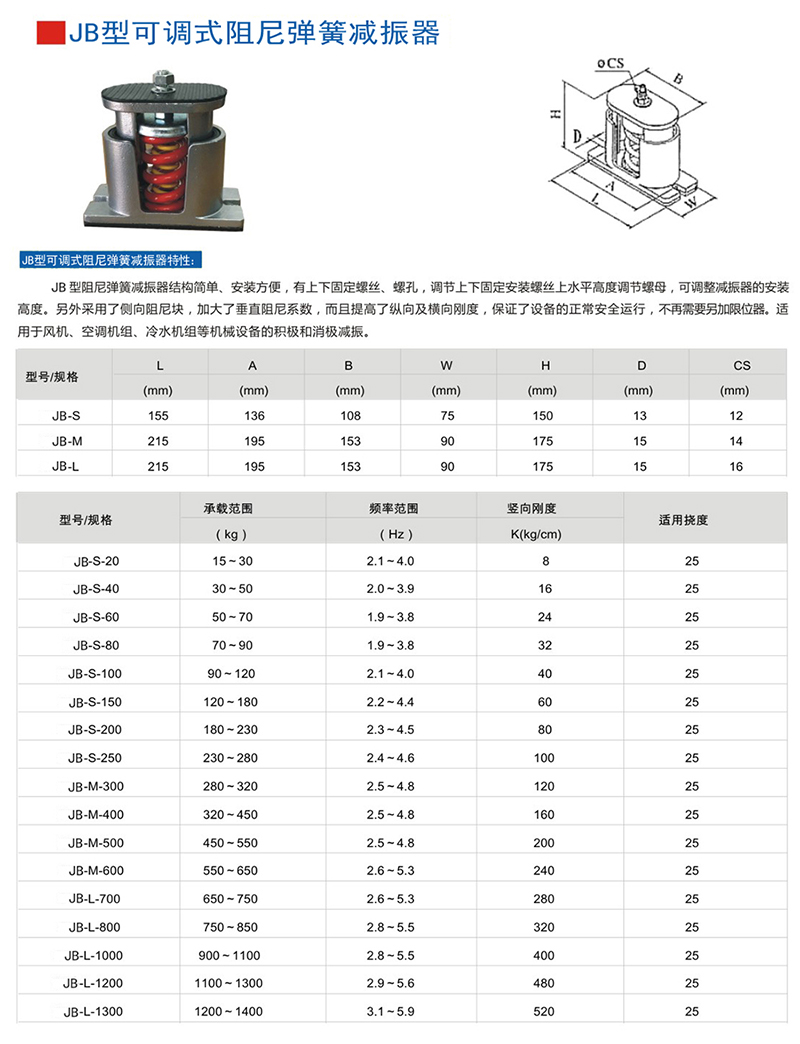

以下是JB型彈簧減震器外形尺寸和其他型號表：
